Fusion Bonded Epoxy Steel (FBE) Tank
0102030405
Awwa D103 Standard And Nsf 61 Certified Bolted Fusion Bonded Epoxy Steel Tank

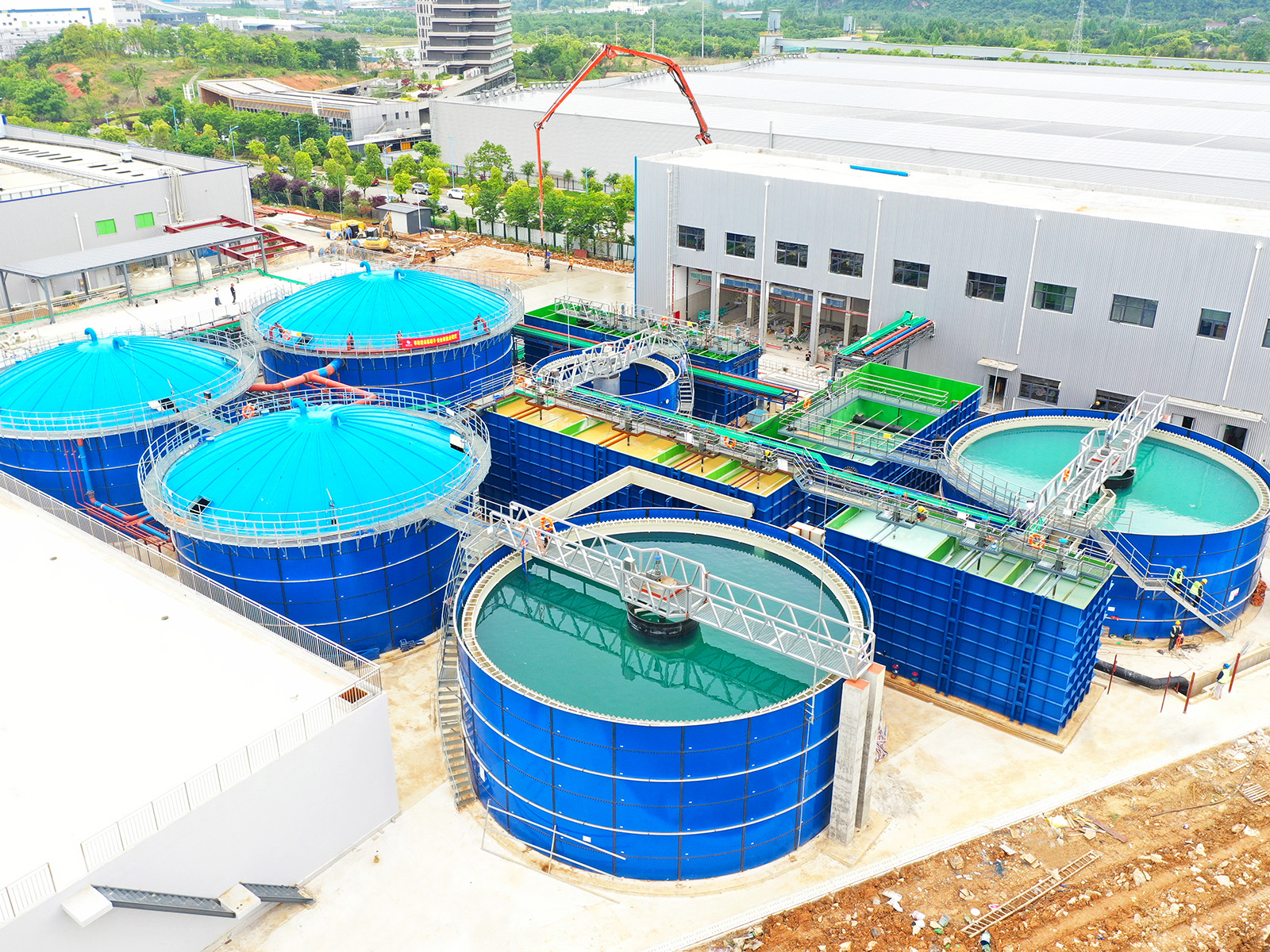

Product Detail
YHR Epoxy Tanks Technology
Fusion Bonded Epoxy (FBE) is an electrostatically applied coating system with superior coverage and uniform coating thickness. AkzoNobel high-tech RESICOAT R4-ES used on the internal surface combined with the ultra durable INTERPON D2525 on the external surface ensures high performance corrosion resistance for storage tanks and silos. The internal coating RESICOAT R4-ES is NSF/ANSI 61 certified for drinking water contact, and the internal contact surface of every panels are zero defects tested at 1100v before delivering to the clients.
√ 100% coverage on edges and holes by electrostatically painting
Fusion Bonded Epoxy (FBE) is an electrostatically applied coating system with superior coverage and uniform coating thickness. AkzoNobel high-tech RESICOAT R4-ES used on the internal surface combined with the ultra durable INTERPON D2525 on the external surface ensures high performance corrosion resistance for storage tanks and silos. The internal coating RESICOAT R4-ES is NSF/ANSI 61 certified for drinking water contact, and the internal contact surface of every panels are zero defects tested at 1100v before delivering to the clients.
√ 100% coverage on edges and holes by electrostatically painting
Specification
Standard Color: RAL 5013 Cobalt Blue, RAL 6002 Leaf Green, RAL 9016 Traffic White
Dry Film Thickness: Minimum 12mils / 300 microns interior, Minimum 9 mils/ 80 microns exterior
Hot Water Immersion: 90 days
Adhesion: ≥16MPa
Corrosion Resistance :Meets or exceeds industry norms
Impact Resistance: > 18 Joule
PH Range: 3-13
Abrasion Resistance: CS CS-17, 1000g, 1000 cycles <40mg
Hardness: 2H
Chemical lmmersion: 6 months no change (refer to the Standard of chemical reagents)
Holiday Test: 1100V to 1500V
Dry Film Thickness: Minimum 12mils / 300 microns interior, Minimum 9 mils/ 80 microns exterior
Hot Water Immersion: 90 days
Adhesion: ≥16MPa
Corrosion Resistance :Meets or exceeds industry norms
Impact Resistance: > 18 Joule
PH Range: 3-13
Abrasion Resistance: CS CS-17, 1000g, 1000 cycles <40mg
Hardness: 2H
Chemical lmmersion: 6 months no change (refer to the Standard of chemical reagents)
Holiday Test: 1100V to 1500V

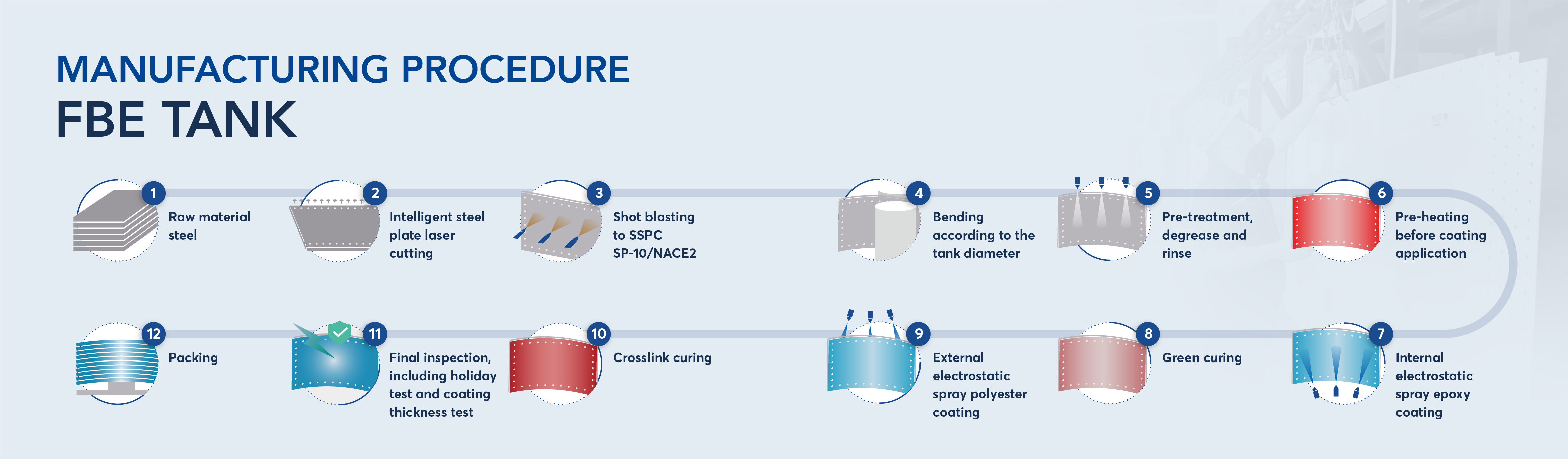

Manufacturing Procedure
Quality Control

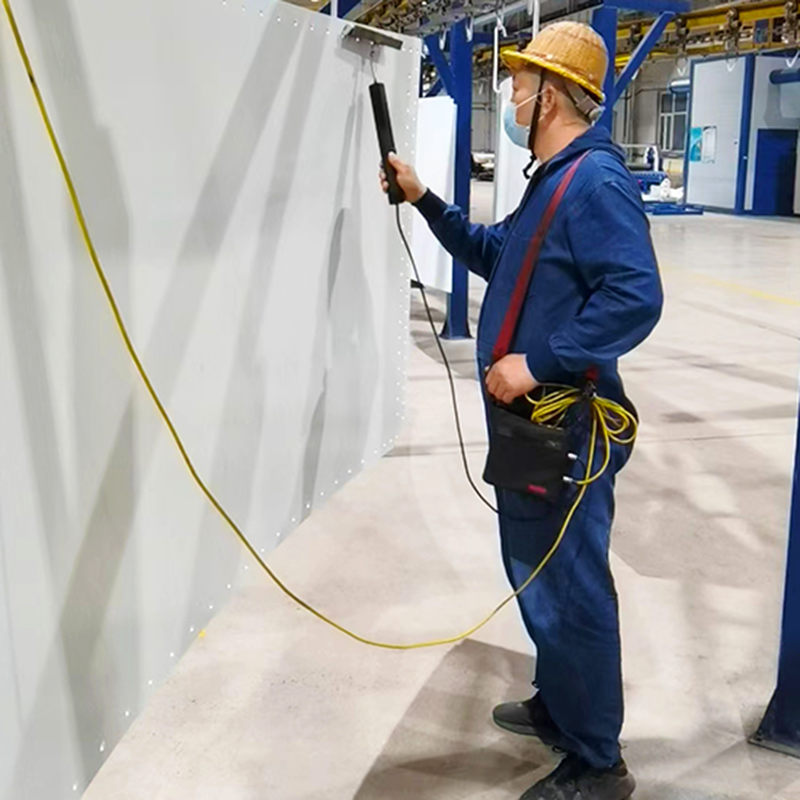

● 1100V Holiday Test every panel
● Coating Adhesion Test

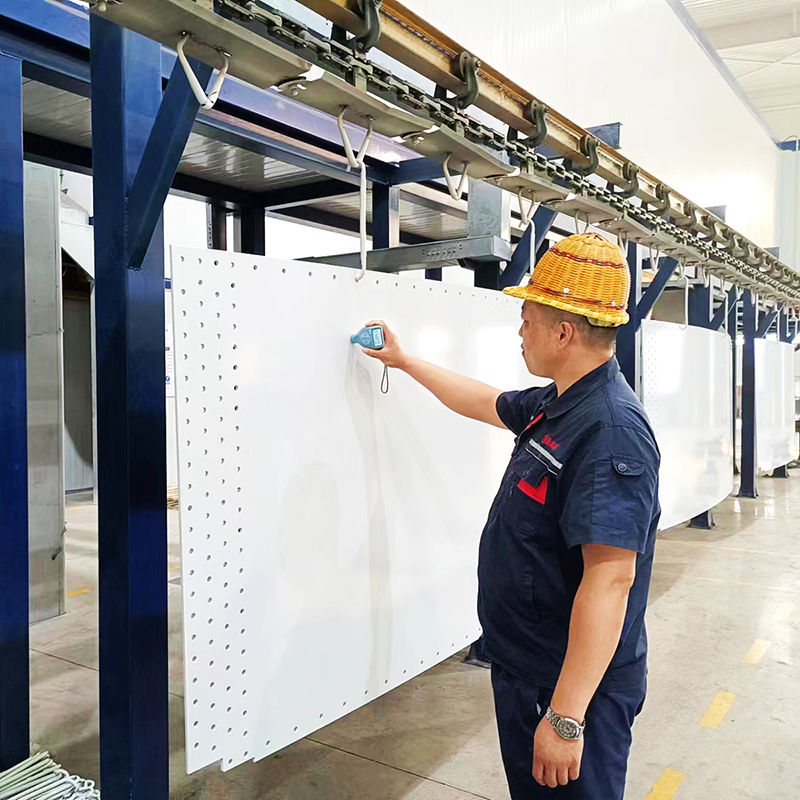

● Dry Film Thickness Test on both sides
● Mechanical Properties Test each batch
● Color Compare Test each batch
● Wet Sponge Test if required
● Coating Adhesion Test
● Dry Film Thickness Test on both sides
● Mechanical Properties Test each batch
● Color Compare Test each batch
● Wet Sponge Test if required

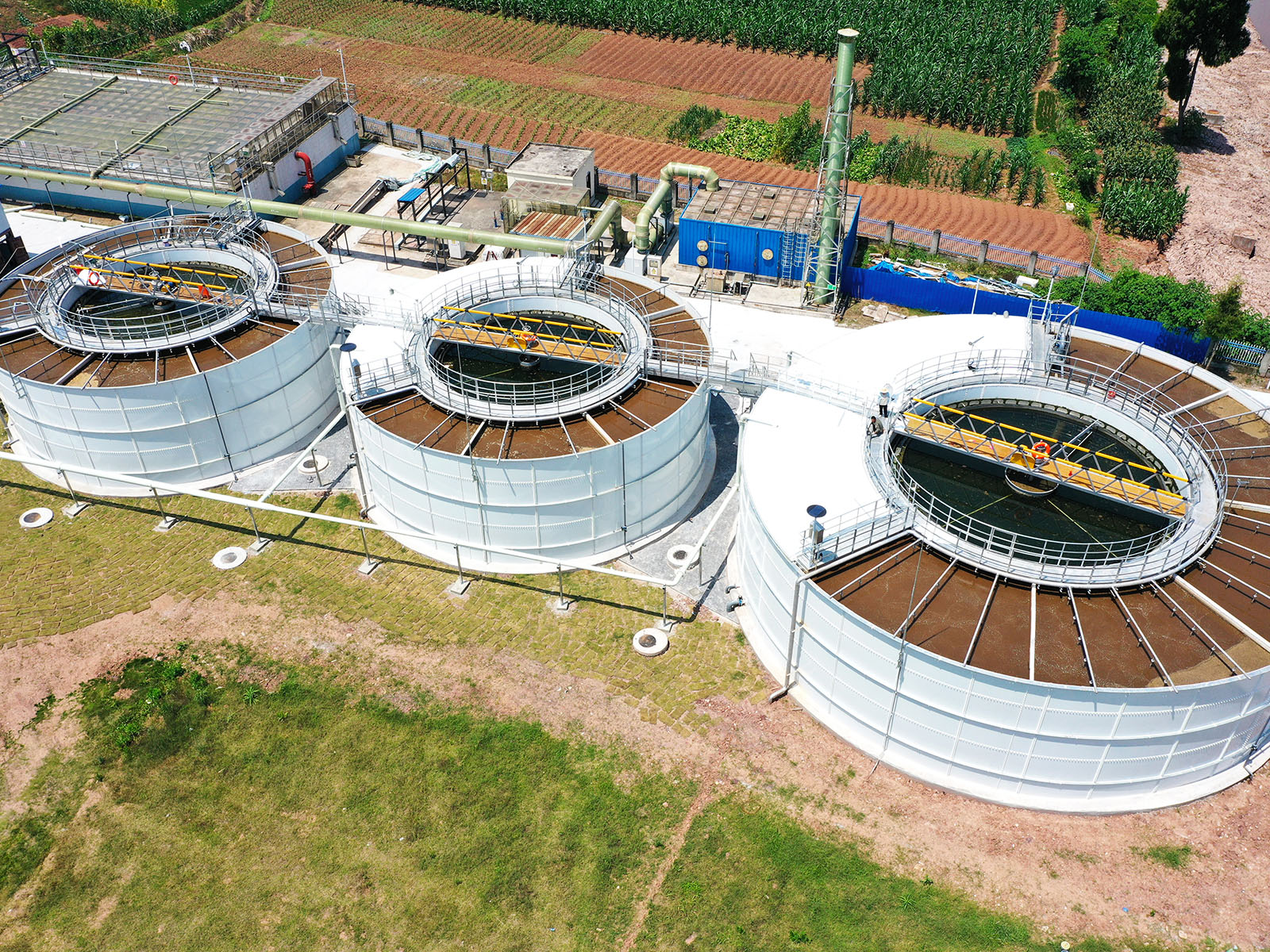

Advantages
● Excellent anti-corrosion performance
● Smooth, cohesionless, anti-bacteria
● Wear and scratch resistance
● High-inertia, high acidity / alkalinity tolerance
● Fast installation with better quality: design, production and quality contril in factory
● Less influenced by local weather
● Safe, skill-free: less working aloft, no need for long time worker training
● Low maintenance cost and easy to repair
● Possible to combine with other technologies
● Possible to relocate, to expand or to reuse
● Beautiful appearance
● Smooth, cohesionless, anti-bacteria
● Wear and scratch resistance
● High-inertia, high acidity / alkalinity tolerance
● Fast installation with better quality: design, production and quality contril in factory
● Less influenced by local weather
● Safe, skill-free: less working aloft, no need for long time worker training
● Low maintenance cost and easy to repair
● Possible to combine with other technologies
● Possible to relocate, to expand or to reuse
● Beautiful appearance

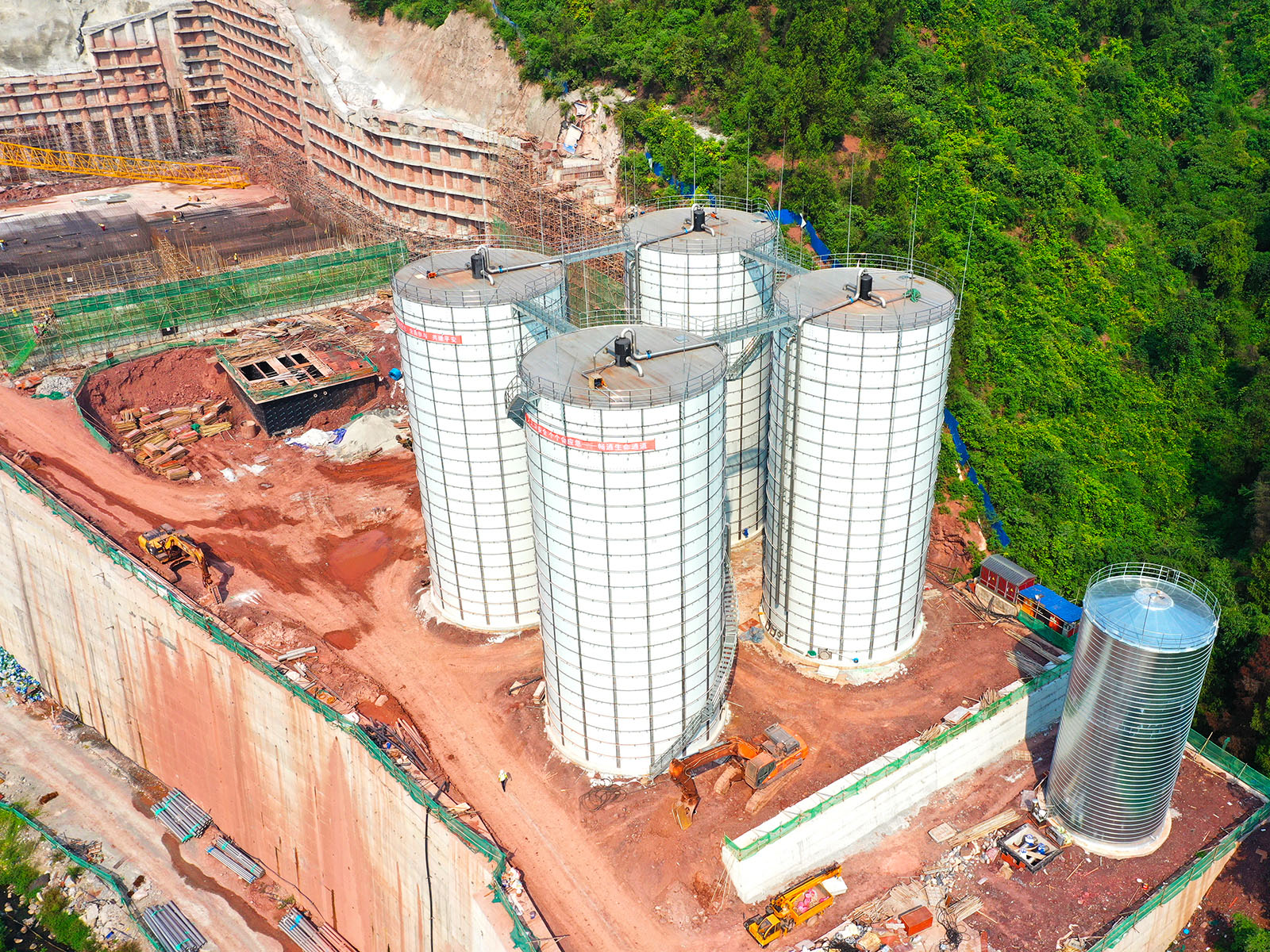

Application
● Municipal wastewater
● Industrial wastewater
● Potable water
● Fire protection water
● Biogas digester
● Slurry storage
● Sludge storage
● Liquid leachate
● Dry bulk storage
● Industrial wastewater
● Potable water
● Fire protection water
● Biogas digester
● Slurry storage
● Sludge storage
● Liquid leachate
● Dry bulk storage
