Biogas Holder
0102030405
Double Membrane Methane Gas Holder For Biogas With Large Capacity
Biogas Holder
Biogas holders are essential components in biogas systems, providing safe and efficient storage for the biogas generated from organic waste. YHR’s biogas holders are constructed using specially formulated membrane materials with excellent resistance to mechanical stresses, UV radiation, and chemical corrosion.
The membrane material also features low permeability, making it an ideal choice for long-term biogas storage. These versatile solutions are widely used in waste treatment plants, agricultural facilities, and renewable energy projects, contributing to sustainable energy development and environmental protection.
The membrane material also features low permeability, making it an ideal choice for long-term biogas storage. These versatile solutions are widely used in waste treatment plants, agricultural facilities, and renewable energy projects, contributing to sustainable energy development and environmental protection.

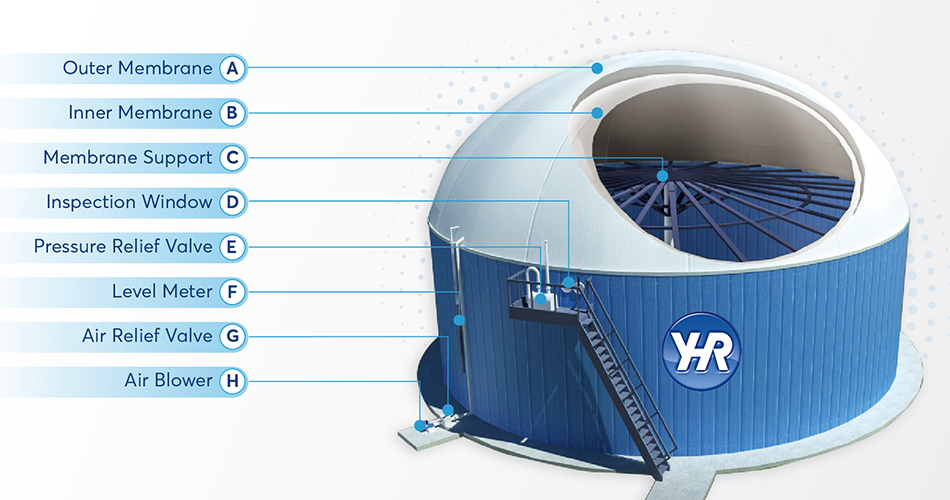

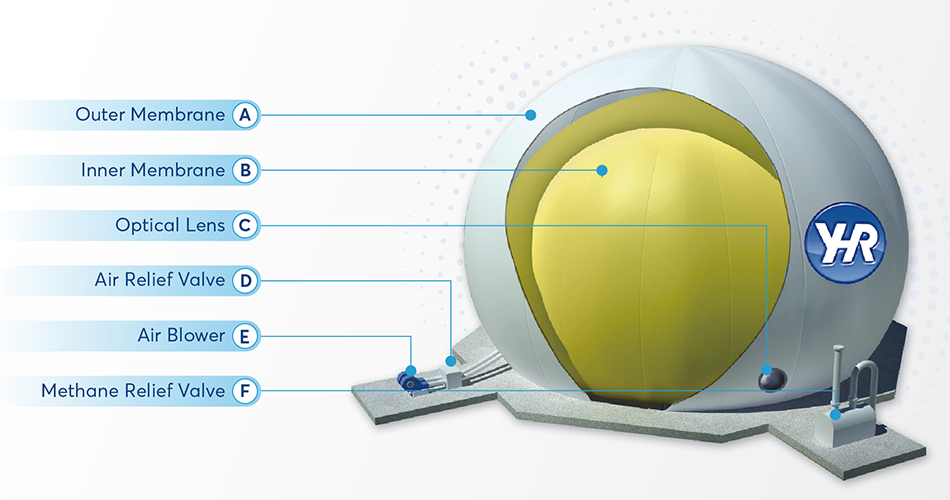

Structure Drawing
Specification
Capacity Customized according to client needs, common range: 20 cubic meters to 10,000 cubic meters
Materials: PVC-coated polyester fabric membranes
Welding Method: Radio Frequency (RF) Welding
Pressure Resistance: According to design requirements, typically 1.5 times working pressure
Working Pressure: 0.05 - 0.5 bar
Operating Temperature: -40°C to +70°C
Gas Tightness: Qualified gas tightness test, no leakage
Control System: Equipped with pressure sensor, safety valve, control panel, etc.
Service Life: 10-15 years, specific to usage environment and maintenance
Maintenance Requirements: Regular inspection of air tightness, pressure control system, and connection interfaces
Color Typically: white or grey, customizable according to client requirements
Materials: PVC-coated polyester fabric membranes
Welding Method: Radio Frequency (RF) Welding
Pressure Resistance: According to design requirements, typically 1.5 times working pressure
Working Pressure: 0.05 - 0.5 bar
Operating Temperature: -40°C to +70°C
Gas Tightness: Qualified gas tightness test, no leakage
Control System: Equipped with pressure sensor, safety valve, control panel, etc.
Service Life: 10-15 years, specific to usage environment and maintenance
Maintenance Requirements: Regular inspection of air tightness, pressure control system, and connection interfaces
Color Typically: white or grey, customizable according to client requirements
Advantages
