Glass Fused To Steel (GFS) Tank
0102030405
Gfs Bolted Steel Tanks For Drinking Water Storage

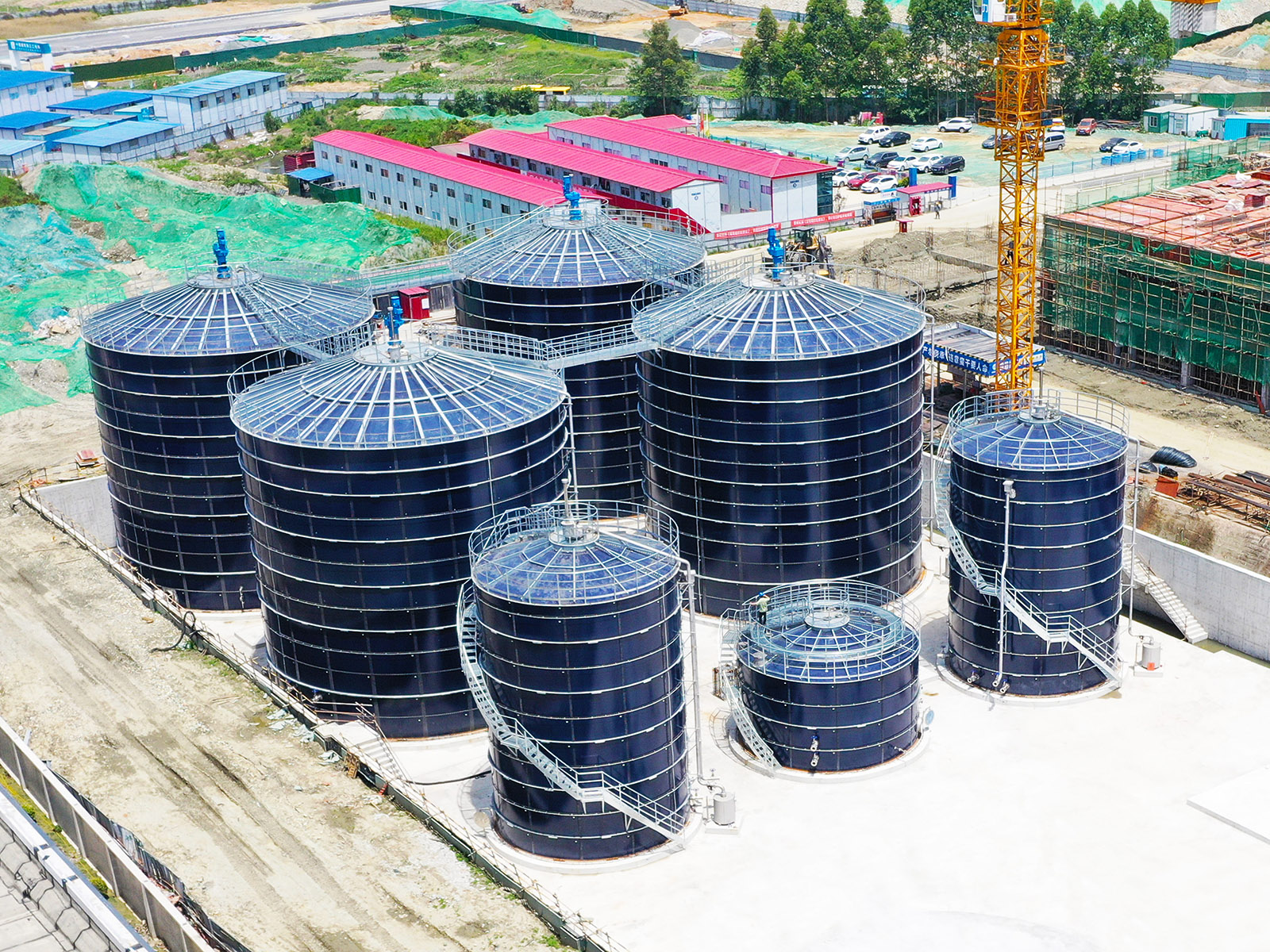

Product Detail
Higher anti-corrosion YHR glass fused to steel tank using advanced manufacturing technology
Glass-Fused-to-Steel / Glass-Lined-to-Steel
YHR Glass-Fused-To-Steel/Glass-LIned-Steel Technology, is a leading solution which combines the advantages of both materials – the strength and flexibility of the STEEL and high corrosion resistance of the GLASS. The Glass fused to the Steel at 1500-1650 deg. F (800-900 deg. C), become a new material: GLASS-FUSED-TO-STEEL with perfect anti-corrosion performance.
YHR has developed high-strength TRS (Titanium Rich Steel) plates specially produced for Glass-Fused-To-Steel Technology, which can work perfectly with our glass frit and can eliminates the “Fish Scale”defect.
Glass-Fused-to-Steel / Glass-Lined-to-Steel
YHR Glass-Fused-To-Steel/Glass-LIned-Steel Technology, is a leading solution which combines the advantages of both materials – the strength and flexibility of the STEEL and high corrosion resistance of the GLASS. The Glass fused to the Steel at 1500-1650 deg. F (800-900 deg. C), become a new material: GLASS-FUSED-TO-STEEL with perfect anti-corrosion performance.
YHR has developed high-strength TRS (Titanium Rich Steel) plates specially produced for Glass-Fused-To-Steel Technology, which can work perfectly with our glass frit and can eliminates the “Fish Scale”defect.
Specification
Standard Color: RAL 5013 Cobalt Blue, RAL 6002 Leaf Green, RAL 9016 Traffic White
RAL 1001 Beige (Tan)
Coating Thickness：250-550μm
Coating Process：1 mix-coats, 2 coats 2 fires or 3 coats 3 fires
Adhesion：Class 3, (EN 10209:2013)
Elasticity： 500KN/mm
Hardness： 5.0 Mohs
PH Range： Standard Grade 3-11; Special Grade 1-14
Holiday Test： 900V os 1500V
RAL 1001 Beige (Tan)
Coating Thickness：250-550μm
Coating Process：1 mix-coats, 2 coats 2 fires or 3 coats 3 fires
Adhesion：Class 3, (EN 10209:2013)
Elasticity： 500KN/mm
Hardness： 5.0 Mohs
PH Range： Standard Grade 3-11; Special Grade 1-14
Holiday Test： 900V os 1500V
Manufacturing Procedure
Advantages
● Excellent anti-corrosion performance
● Smooth, cohesionless, anti-bacteria
● Wear and scratch resistance
● High-inertia, high acidity / alkalinity tolerance
● Fast installation with better quality: design, production and quality contril in factory
● Less influenced by local weather
● Safe, skill-free: less working aloft, no need for long time worker training
● Low maintenance cost and easy to repair
● Possible to combine with other technologies
● Possible to relocate, to expand or to reuse
● Beautiful appearance
● Smooth, cohesionless, anti-bacteria
● Wear and scratch resistance
● High-inertia, high acidity / alkalinity tolerance
● Fast installation with better quality: design, production and quality contril in factory
● Less influenced by local weather
● Safe, skill-free: less working aloft, no need for long time worker training
● Low maintenance cost and easy to repair
● Possible to combine with other technologies
● Possible to relocate, to expand or to reuse
● Beautiful appearance

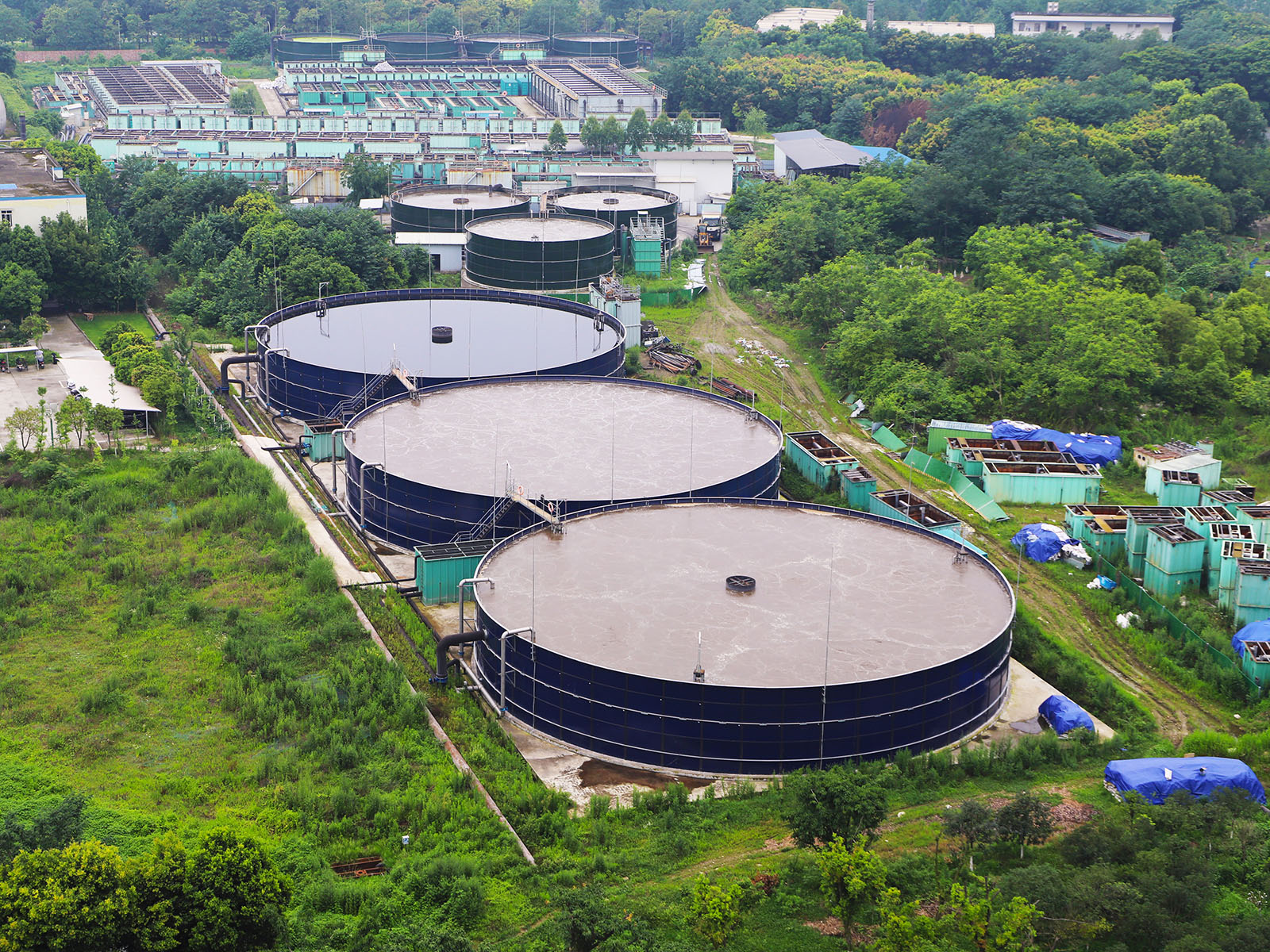

Application
● Municipal wastewater
● Industrial wastewater
● Potable water
● Fire protection water
● Biogas digester
● Slurry storage
● Sludge storage
● Liquid leachate
● Dry bulk storage
● Industrial wastewater
● Potable water
● Fire protection water
● Biogas digester
● Slurry storage
● Sludge storage
● Liquid leachate
● Dry bulk storage
