Products
-
High Quality Aluminum Dome Roof for GFS tank GLS tank
Brand: YHR
Model Number: ADR-01
Place of Origin: Hebei, China
Material: Aluminum, Stainless Steel
Installation methods: Inverted Installation -
Aluminum dome roof geodesic dome for water tanks
Brand: YHR
Model Number: ADR-01
Place of Origin: Hebei, China
Material: Aluminum, Stainless Steel
Installation methods: Inverted Installation -
YHR Biogas Upgrading System for Anerobic Biogas Plant
Brand: YHR
Model Number: MS-01
Place of Origin: Hebei, China
Biogenic Methane Index：Over 97%
Methane Recovery：Over 96%
Mode to utilize Biomethane：CNG or Gas Network
Unit Energy Consumption：0.15-0.25Kwh/Nm3 Methane
Operating Pressure：Medium or Low Pressure, 5-10/10-20 Bar
Warranty：2 Years -
Biogas upgrading system anaerobic biogas
Brand: YHR
Model Number: MS-01
Place of Origin: Hebei, China
Biogenic Methane Index：Over 97%
Methane Recovery：Over 96%
Mode to utilize Biomethane：CNG or Gas Network
Unit Energy Consumption：0.15-0.25Kwh/Nm3 Methane
Operating Pressure：Medium or Low Pressure, 5-10/10-20 Bar
Warranty：2 Years -

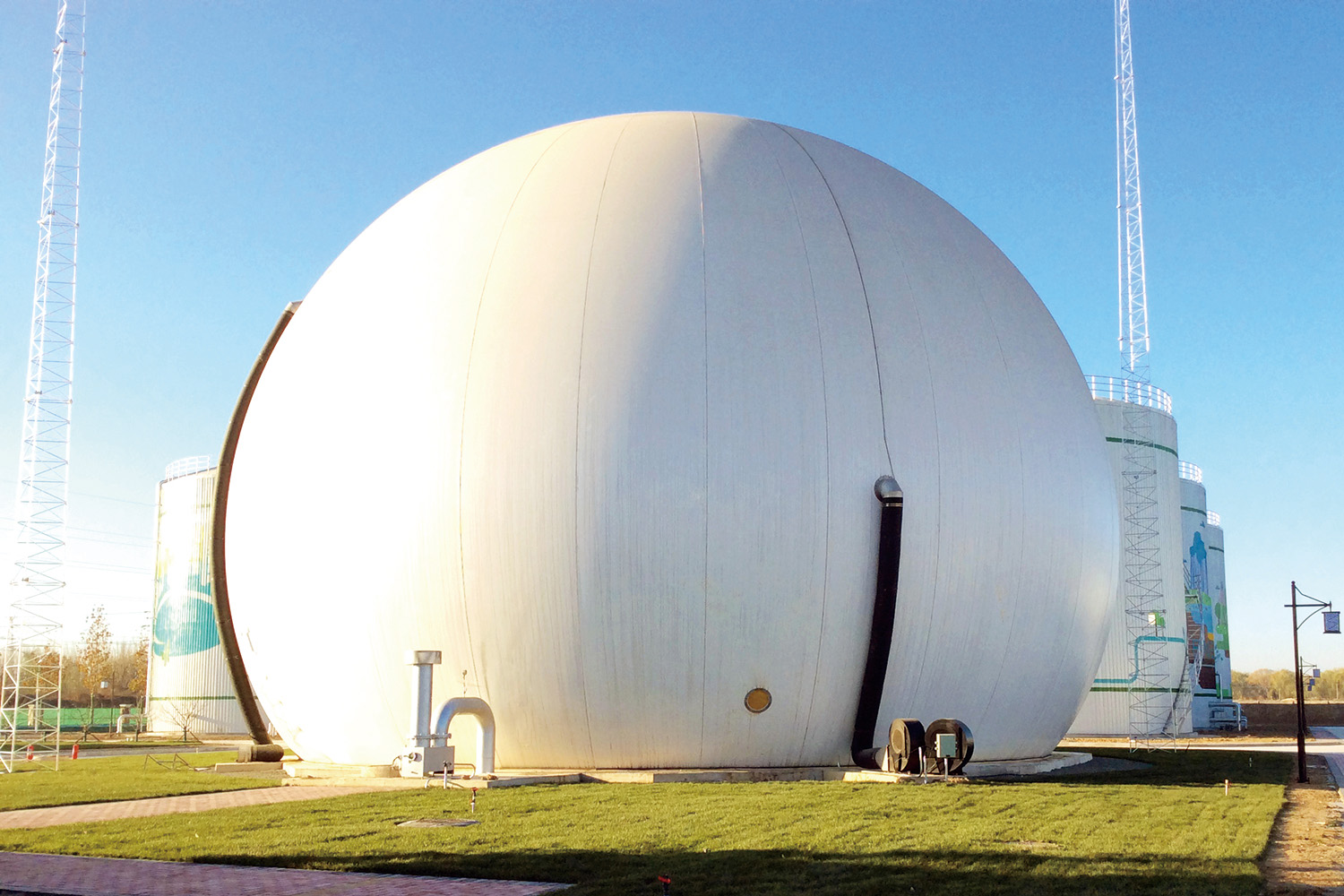

Double membrane methane gas holder for biogas with 20000 m3 capacity
Brand: YHR
Place of Origin: Hebei, China, Material from Germany
Capacity: 100 - 5000m3
Color: White
Outer membrane treatment technology: Double-sided PVDF high self-cleaning coating
Inner membrane treatment technology:PVDF & UV curing dual treatment
Fire protection standard: DIN 4102B1, GB8624B1 -
Long lifetime double membrane biogas holder biogas tank roof
Brand: YHR
Place of Origin: Hebei, China, Material from Germany
Capacity: 100 - 5000m3
Color: White
Outer membrane treatment technology: Double-sided PVDF high self-cleaning coating
Inner membrane treatment technology:PVDF & UV curing dual treatment
Fire protection standard: DIN 4102B1, GB8624B1 -
NSF 61 Certified Bolted Stainless Steel Tanks Drinking Water Storage Tank
Brand: YHR
Model Number: SST-304/316
Certificates: ISO 9001:2008, NSF/ANSI 61
Place of Origin: Hebei, China
Material: Stainless Steel
Type: Bolted Steel Tank -
NSF 61 approval Stainless Steel Tank for Drinking Water Storage Tank
Brand: YHR
Model Number: SST-304/316
Certificates: ISO 9001:2008, NSF/ANSI 61
Place of Origin: Hebei, China
Material: Stainless Steel
Type: Bolted Steel Tank -

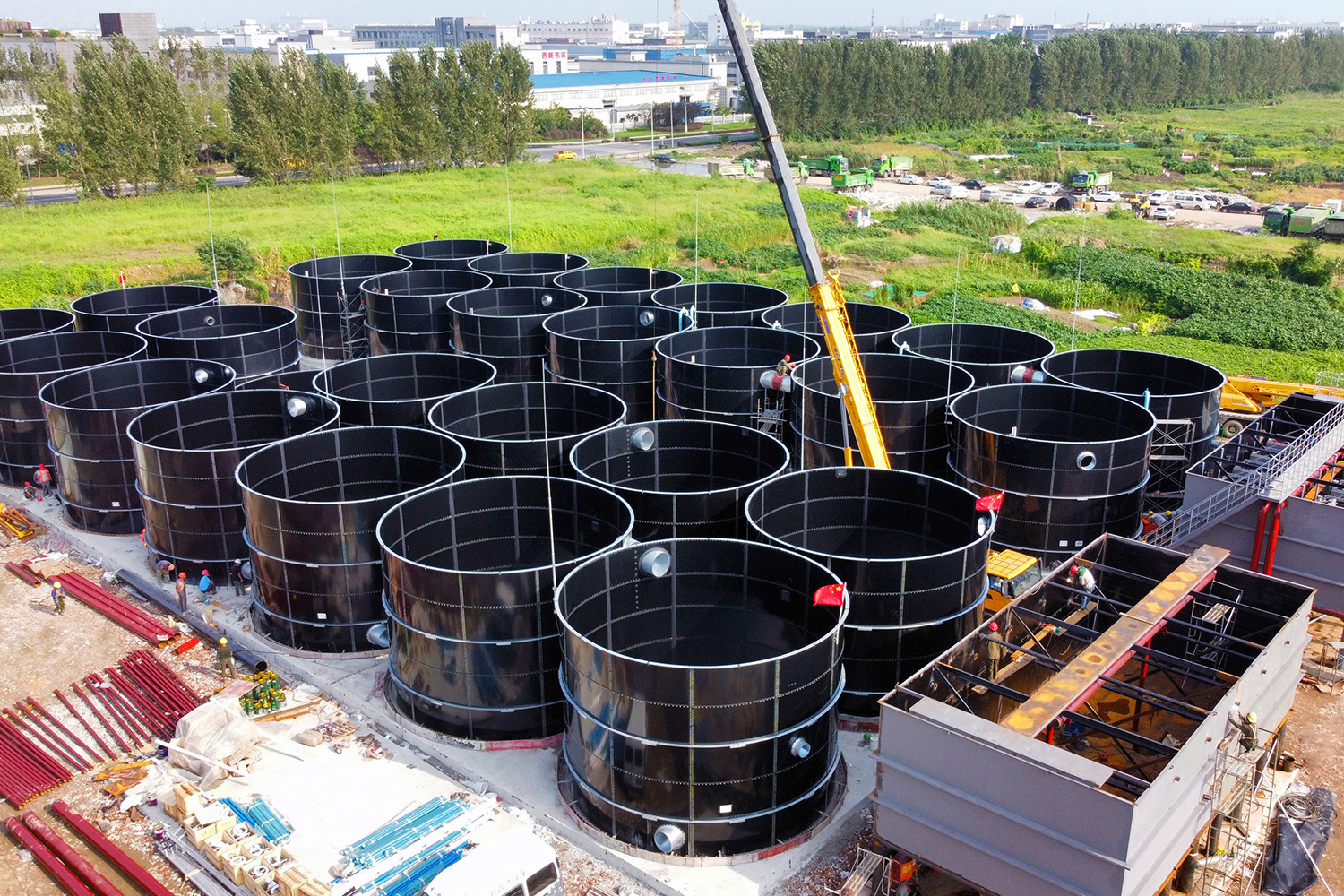

YHR Epoxy Coated Steel Tanks for Water Harvesting and Treatment
Brand: YHR
Model Number: FBE T-01
Certificates: NSF/ANSI 61 Certified and Listing
Place of origin: Hebei, China
Dry Film Thickness(interior): 5-10 mils / 150-250 microns
Dry Film Thickness(exterior): 4-9 mils/ 100-230 microns
Hot water immersion 90 days, 70°C: Pass
Adhesion after 7 days, 90°C water: ≥16MPa
Corrosion Resistance: Meets or exceeds industry norms
Impact Resistance: > 18 Joule
PH range: 3-13
Abrasion Resistance: CS-17, 1000g, 1000 cycles <40mg
Hardness: 2H
Chemical Immersion: 2 years no change
Holiday test: Discontinuity free (zero defects at test voltage) -
Epoxy agricultural water storage tank for irrigation water
Brand: YHR
Model Number: FBE T-01
Certificates: NSF/ANSI 61 Certified and Listing
Place of origin: Hebei, China
Dry Film Thickness(interior): 5-10 mils / 150-250 microns
Dry Film Thickness(exterior): 4-9 mils/ 100-230 microns
Hot water immersion 90 days, 70°C: Pass
Adhesion after 7 days, 90°C water: ≥16MPa
Corrosion Resistance: Meets or exceeds industry norms
Impact Resistance: > 18 Joule
PH range: 3-13
Abrasion Resistance: CS-17, 1000g, 1000 cycles <40mg
Hardness: 2H
Chemical Immersion: 2 years no change
Holiday test: Discontinuity free (zero defects at test voltage) -
Anti-corrosion Glass Lined to Steel tanks with Large Storage for Liquid Leachate Treatment
• Material: Glass-Fused-To-Steel
• Type: Bolted Steel Tank
• Color: RAL5013 Cobalt Blue
RAL6006 Grey Olive
RAL9016 Traffic White
RAL3020 Traffic Red
RAL 1001 Beige (Tan)
• Coat Thickness: 0.25-0.45mm
• Coating Process: Standard 2 fires 2 coats, 3 fires 3 coats available
• Adhesive: 3450N/cm
• Elasticity: 500KN/mm
• Hardness: 6.0 Mohs
• PH Range: Standard Grade 3~11; Special Grade 1~14
• Service Year: More than 30 Years
• Holiday Test: 900V to 1500V -

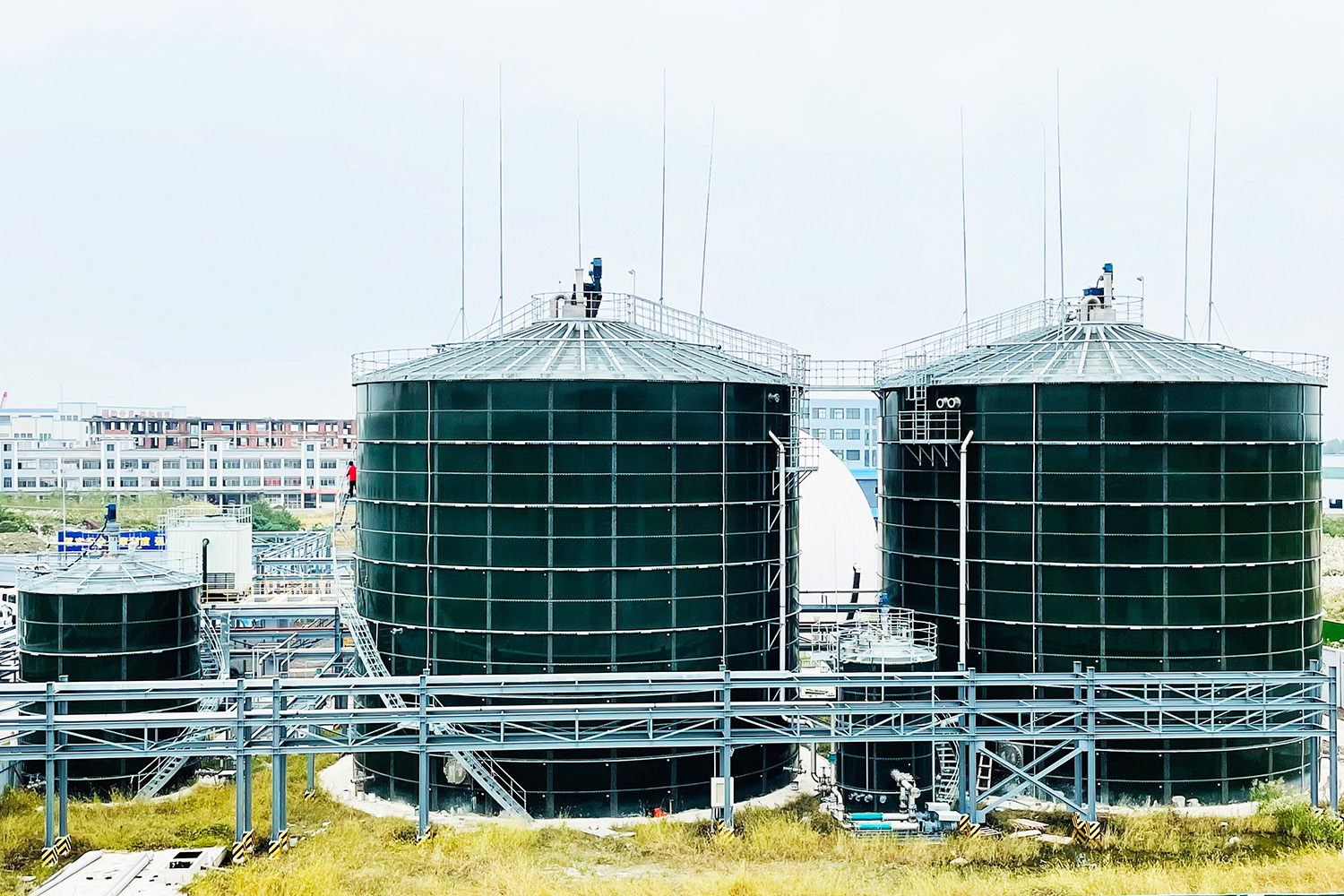

GFS tanks for anaerobic biogas digester in food waste plant
• Material: Glass-Fused-To-Steel
• Type: Bolted Steel Tank
• Color: RAL5013 Cobalt Blue
RAL6006 Grey Olive
RAL9016 Traffic White
RAL3020 Traffic Red
RAL 1001 Beige (Tan)
• Coat Thickness: 0.25-0.45mm
• Coating Process: Standard 2 fires 2 coats, 3 fires 3 coats available
• Adhesive: 3450N/cm
• Elasticity: 500KN/mm
• Hardness: 6.0 Mohs
• PH Range: Standard Grade 3~11; Special Grade 1~14
• Service Year: More than 30 Years
• Holiday Test: 900V to 1500V
